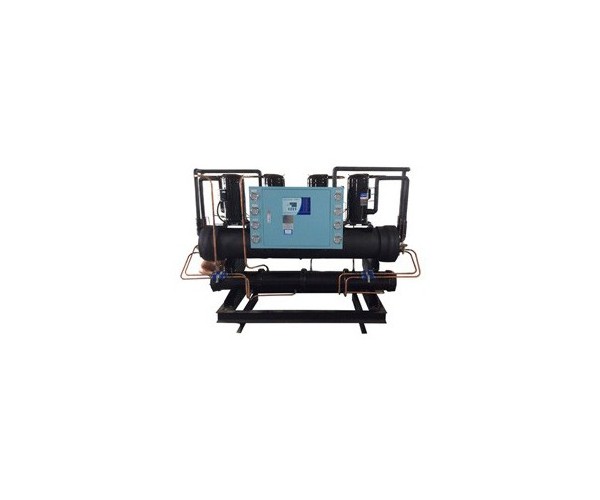

开放式工业冷水机-

开放式工业冷水机

产品详情

Imported high-quality compressors, pumps and other core components from Japan and Europe and the United States are safe, quiet, power-saving and durable.

The Italian temperature controller can accurately control the water temperature from + 3 to + 45 C.

The design of condenser and radiator is unique, and the heat transfer effect is excellent.

With current overload protection, high and low voltage and electronic time delay and other safety protection devices, when a fault occurs, the alarm will be issued to show the cause of the fault.

Equipped with stainless steel insulation water tank, easy to clean and maintain.

It is equipped with reverse phase underphase protection and anti-icing protection.

This series of chillers can be customized for acid and alkali resistance.

technical parameter

型号		单位	LC-05WO	LC-10WO	LC-15WO	LC-20WO	LC-30WO	LC-40WO
制冷量		Kw	15	30.5	45	61	92	122
制冷量		Kcal/h	12900	26230	38700	52460	79120	104920
压缩机	输入功率	Kw	4.5	4.5×2	4.5×3	9×2	9×3	9×4
压缩机	额定功率	Hp	5	5×2	5×3	10×2	10×3	10×4
蒸发器	类型	盘管式蒸发器			壳管式蒸发器
蒸发器	水管口径	lnch	1	2	2	2-1/2	2-1/2	3
冷冻媒体	类型	R22	R22	R22	R22	R22	R22	R22
冷冻媒体	填充量	Kg	2.5	5	7.5	11	12	18
水冷冷凝器	类型	盘管式冷凝器
水冷冷凝器	水管口径	Luch	1	1-1/2	1-1/2	2	2-1/2	3
冷却水量		L/min	70	110	170	330	330	480
水箱容量		Liter	50	70	125	150	150	180
水泵	功率	Kw	0.75	1.5	2.2	4	4	4
	功率	hp	1	2	3	5	5	5
	流量	l/min	60	100	200	400	400	400
管径	冷水出口	luch	1/2×4	2	2	2-1/2	2-1/2	3
管径	冷水回口	luch	1/2×4	2	2	2-1/2	2-1/2	3
外形尺寸	水冷	cm	97×56×97	158×75×139	204×80×149	210×85×151	224×88×151	265×95×160
外形尺寸	风冷	cm	125×68×113	182×92×181	195×105×181	230×128×200	240×138×200	320×148×210

Guangdong Lechang Refrigeration Technology Co., Ltd

Address: No.3, Lane 1, South Jixiang Road, Chashan village, Chashan Town, Dongguan City, Guangdong Province.China

Tel: 86 0769 81811887

Mobile phone: Grace +86 13553814998
